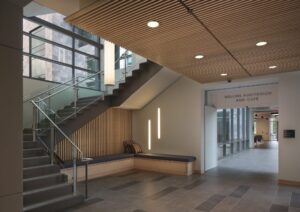

1400 Dowel Cross Piece Grille
Hardwood Core
Fire Rated (Class A)
1 year Warranty
Ceiling, Wall
Accommodates Point Lighting, Penetrations
Panelized
Low Sound Transmission
Accommodates Point Lighting, Access Panels
Factory Stained, Factory Finished, Matte
09.51.53 – Direct-Applied Acoustical Ceilings
Custom Stain Matching
Open to Above with Scrim
4 lbs/sf
Direct Screw
FSC Certified
Interior
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!
Product Description
A seismically compliant system with classic character using real wood veneer, it’s ideal for designs with deep members.
The Dowel/Cross Piece Grille uses a pre-assembled panel fabrication process. This product can be installed throughout the country and is a preferred design in areas requiring seismic compliance. Panel access is available by means of removing attachment screws hidden in reveals. Repeated removal requires threaded 9Wood Caddy-Lock attachment as opposed to screws.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
|---|
|
|
1412-2 | Dowel/Cross Piece Grille | Solid, Veneer | Detail (CAD) | Revit | |
|
|
1412-3 | Dowel/Cross Piece Grille | Solid, Veneer | Detail (CAD) | Revit | |
|
|
1412-4 | Dowel/Cross Piece Grille | Solid, Veneer | Detail (CAD) | Revit | |
|
|
1412-5 | Dowel/Cross Piece Grille | Solid, Veneer | Detail (CAD) | Revit | |
|
|
1412-6 | Dowel/Cross Piece Grille | Solid, Veneer | Detail (CAD) | Revit |
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
| Width | Depth | Grille Members per Linear Foot | ||||||
|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||
| 3/4" | 1 3/8" | 1412-2 | 1412-3 | 1412-4 | 1412-5 | 1412-6 | 1412-7 | 1412-8 |
| 3/4" | 2 1/4" | 1413-2 | 1413-3 | 1413-4 | 1413-5 | 1413-6 | 1413-7 | 1413-8 |
| 3/4" | 3 1/4" | 1414-2 | 1414-3 | 1414-4 | 1414-5 | |||
| 3/4" | 5 1/4" | 1416-2 | 1416-3 | |||||
| 1 7/16" | 2 1/4" | 1423-2 | 1423-3 | 1423-4 | ||||
| 1 7/16" | 3 1/4" | 1424-2 | 1424-3 | 1424-4 | ||||
| 1 7/16" | 5 1/4" | 1426-2 | 1426-3 | |||||
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
