2400 T&G Linear

Solid Wood Core

Fire Rated (Class A)

Ceiling, Wall

Accommodates Point Lighting, Penetrations

Progressive

Low Sound Transmission

Accommodates Point Lighting, Access Panels

Factory Stained, Factory Finished, Matte

09.50.00 – Ceilings

Custom Stain Matching

Closed System

3 lbs/sf

Z-Clip
PEFC Certified
Interior, Exterior
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!

Product Description
The random lengths and joints of this tongue & groove celebrates the traditional feel of solid wood.

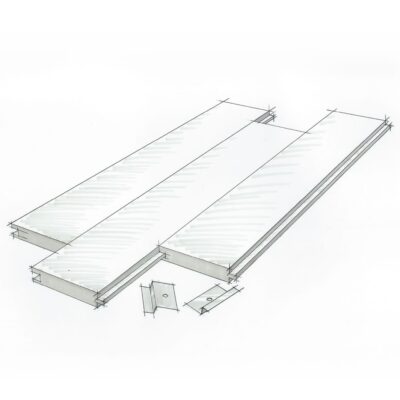

The 9Wood Tongue and Groove Linear style wood ceiling offers the classic linear ceiling design where the individual wood members abut with a “V” groove accenting the edge-to-edge joint. Members are installed randomly to create a continuous look. The Tongue and Groove linear system is provided in random lengths to maximize material yield.
The Tongue and Groove Linear provides the classic “V” Groove closed reveal look and creates a continuous, monolithic ceiling field. Access can be through strategically located access panels or from room perimeters. Members are clipped to T-Bar main runners progressively.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
---|
|
2414-4 | T & G Linear | Solid, Veneer | Detail (CAD) | Revit | |
|
2416-2 | T & G Linear | Solid, Veneer | Detail (CAD) | Revit |
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
Width | Depth | Members per Linear Foot |
---|---|---|
2 | ||
3/4" | 3 1/4" | 2414-4 |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
