2500 T G Splay Linear

Fire Rated (Class A)

Ceiling, Wall

Accommodates Point Lighting, Penetrations

Progressive

Factory Stained, Factory Finished, Matte

Custom Stain Matching

4 lbs/sf

Z-Clip

Interior, Exterior
Applications
Product Description

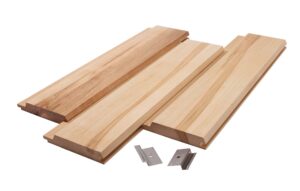

A textured, solid linear wood surface makes a bold statement using wider grooves.

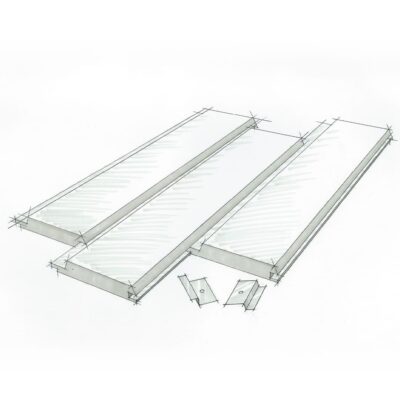

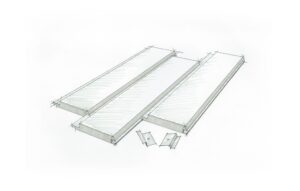

The 9Wood T & G Splay Linear style wood ceiling offers a design where the individual wood members abut with a splay groove accenting the edge-to-edge joint. Members are installed randomly to create a continuous look. The Tongue and Groove linear system is provided in random lengths to maximize material yield.
The T&G Splay Linear provides the traditional splay groove profile in a closed reveal, creating a continuous, monolithic ceiling field. Access can be achieved through strategically located access panels or from room perimeters. Members are clipped to T-Bar main runners progressively.
Performance Data

Data Sheet
Data sheets provide a high level overview of product systems and their limitations

Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations

Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field

Fire Rating
Certifications for Class A fire rating documentation

Detail Download
A collection of addition detail elements related to this product system
Models
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
---|
|
2513-4 | T & G Splay Linear | Solid | Detail (CAD) | ||
|
2514-3 | T & G Splay Linear | Solid | Detail (CAD) | ||
|
2516-2 | T & G Splay Linear | Solid | Detail (CAD) |
SKU Table
Depth | OC Spacing | Members per Linear Foot | |
---|---|---|---|
2 | 4 | ||
3/4" | 3" | 2514-4 | |
3/4" | 5" | 2516-2 |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
