3700 Nanoperf Plank

MDF

Fire Rated (Class A)

Ceiling, Wall

Accommodates Point Lighting, Penetrations

Progressive

Very Low Sound Transmission

Factory Stained, Factory Finished, Matte

Custom Stain Matching

4 lbs/sf

9Wood Rigid Z-Clip

FSC

Interior

8'
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!

Product Description

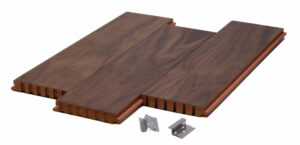

Nanoperf Plank is a real wood veneer panel with ultra-fine micro perforations that disappear beyond two feet, preserving the uninterrupted warmth of wood while delivering NRCs up to 0.85. Its NAF, carbon-negative construction supports wellness goals and helps designers deliver acoustic performance without compromising material authenticity or visual clarity—making it easier to gain client approval and avoid redesigns.
Nanoperf Plank is a real wood veneer panel system with micro perforations engineered for acoustic performance without disrupting the appearance of natural wood. Perforations are ultra-fine and disappear beyond two feet, preserving grain continuity while supporting NRCs up to 0.85, tested per ASTM C423. This allows designers to deliver both visual and acoustic performance without compromise and making it easier to gain client approval and avoid redesigns.
A precision back-drilled wood core enables meaningful absorption in shared environments such as lobbies, meeting rooms, and open-plan offices. Panels install cleanly and integrate well with adjacent systems, helping reduce detailing mismatches and late-stage rework.
Unlike pigmented UV finishes that can flatten grain and limit tonal flexibility, Nanoperf supports penetrating stain finishes that enhance visual depth and bring out the material’s natural variation. Designers gain finer control over tone, texture, and alignment with other finishes.
Panels are fabricated using NAF, carbon-negative, and low-emitting materials, contributing to wellness, indoor air quality, and sustainability objectives.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Wall Install Guide
For contractors and architects learning to understand how to install and configure Nanoperf systems for wall scope in the field
Models
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
---|
|
3715-3 | 3700 | Veneer | Detail (CAD) | Revit | |
|
3718-2 | 3700 | Veneer | Detail (CAD) | Revit |
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
HPD
Published Health Product Declarations
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
