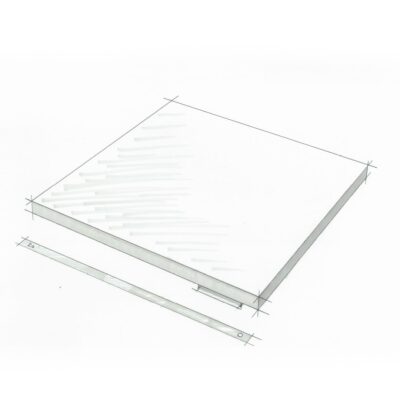

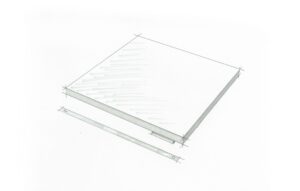

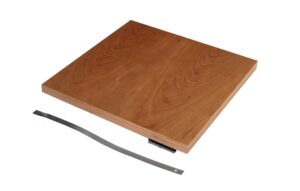

4300 Lift Lock Tile
Fire Rated (Class A)
Ceiling
Accommodates Point Lighting, Penetrations
Panelized
Factory Stained, Factory Finished, Matte
Custom Stain Matching
4 lbs/sf
Lift & Lock
Interior
Applications
Product Description
This product has been replaced by the 4500 XL Channel tile for seismic compliance tiles and with the 4600 True Access Tile for fully downward accessible products. Lift and Lock products are no longer offered by 9Wood.
Originally designed with seismic zones in mind, the 4300 Lift & Lock Tile introduced a new attachment mechanism integrated with direct screw locks on the T-Bar system to allow for seismic compliance while also being downward accessible. However, the 4300 Attachment proved to be problematic over time with repeated access and ultimately compromised reveals visible from below. 9Wood no longer offers this product and at the same time, are humbled by the journey of discovery to improve our Wood Ceiling tile capabilities.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
|---|
|
|
4324-24 | Lift & Lock Tile | Solid | Detail (CAD) | ||
|
|
4348-48 | Lift & Lock Tile | Solid | Detail (CAD) |
SKU Table
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
