5300 Diamond Perf Tile

Fire Rated (Class A)

Ceiling

Accommodates Point Lighting, Penetrations

Panelized

Factory Stained, Factory Finished, Matte

Custom Stain Matching

4 lbs/sf

Lift & Lock

Interior
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!

Product Description

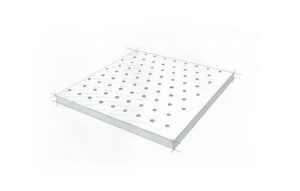

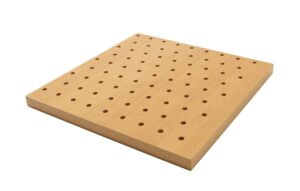

The diagonal pattern of Diamond Perf Tile adds a bold choice to 9Wood’s perforated tile options.
The 9Wood Diamond Perforated Pattern style wood ceiling tiles offer a perforated tiled appearance with a diamond (or 60°) perforation pattern with a non-perforated border. The 5300 style Diamond Perforated Pattern is installed using any of the 4000 series Wood Tile suspension methods.
The Diamond Perforated Pattern permits acoustic attenuation. Accessibility is determined by attachment method.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
---|
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
HPD
Published Health Product Declarations
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
Perf Spacing | Perf Diameter | |||
---|---|---|---|---|
6mm | 8mm | 10mm | 12mm | |
16mm | 5316-06 | 5316-08 | 5316-10 | 5316-12 |
23mm | 5323-06 | 5323-08 | 5323-10 | 5323-12 |
32mm | 5332-06 | 5332-08 | 5332-10 | 5332-12 |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
