8400 Wood Tile Wave

Fire Rated (Class A)

Ceiling

Accommodates Point Lighting, Penetrations

Panelized

Factory Stained, Factory Finished, Matte

Custom Stain Matching

4 lbs/sf

XL Channel

Interior
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!

Product Description

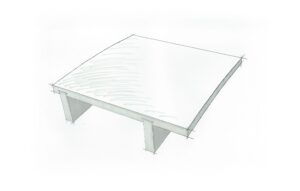

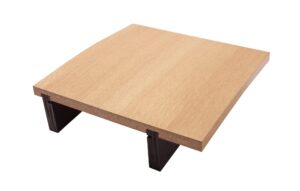

Concave or convex, these pre-curved panels can be beautiful and big: Up to 4′ x 10′ of impact and glamour.

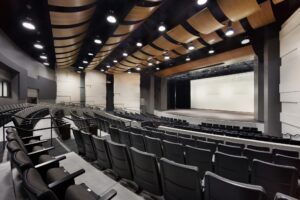

The 9Wood Wood Wave style wood ceiling offers radiused wood tile designs for vaulted ceilings. Panels are factory curved. Several suspension methods can be used, including Torsion Spring downward access and Lift & Shift™ suspension. 1/4″ or 3/8″ reveals are common, concealing the suspension grid.
The Tile Wave provides a concave or convex floating tiled look with concealed suspension using real wood veneers on fire rated cores. This can be an accessible system with pull down, spring release access, or fixed in place if accessibility is not required. In this case access panels can be strategically located in the ceiling field. Radiused tiles may be perforated (see style 8500 Perforated Wood Waves).
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
---|
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
HPD
Published Health Product Declarations
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
Tile Width | Tile Length (Parallel to Grain Directioon) | ||||||
---|---|---|---|---|---|---|---|
24" | 36" | 48" | 60" | 72" | 84" | 96" | |
24" | 84-4824-24 | 84-4824-36 | 84-4824-48 | 84-4824-60 | 84-4824-72 | 84-4824-84 | 84-4824-96 |
36" | 84-4836-24 | 84-4836-36 | 84-4836-48 | 84-4836-60 | 84-4836-72 | 84-4836-84 | 84-4836-96 |
48" | 84-4848-24 | 84-4848-36 | 84-4848-48 | 84-4848-60 | 84-4848-72 | 84-4848-84 | 84-4848-96 |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
