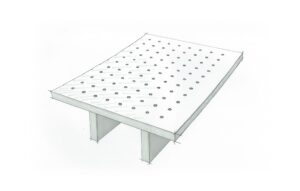

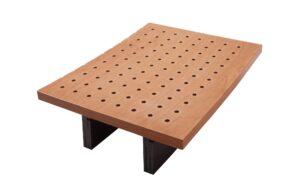

8500 Perf Wood Wave
Fire Rated (Class A)
Ceiling
Accommodates Point Lighting, Penetrations
Panelized
Factory Stained, Factory Finished, Matte
Custom Stain Matching
4 lbs/sf
XL Channel
Interior
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!
Product Description
These tiles provide acoustic control for radiused ceiling designs. Choose your perforation pattern.

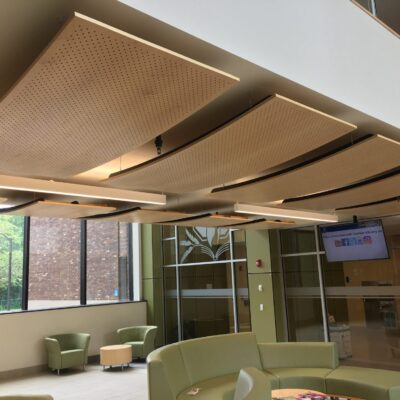

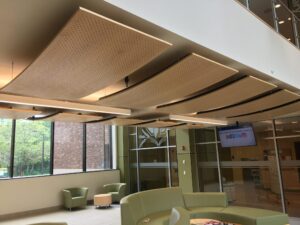

The 9Wood Perforated Wood Tile style wood ceiling offers a variety of perforated patterns for radiused wood tile designs for vaulted ceilings. The standard perforation pattern groups are parallel, staggered and diamond.
The Perforated Wood Tile is used in spaces where a both vaulted designs requiring acoustical absorption by means of percent open area is desired. Suspension methods follow the style 8400 Wood Waves, typically Torsion Spring or Lift & Lock™.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
|---|
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
HPD
Published Health Product Declarations
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
| Perf Spacing | Kerf Width | ||||
|---|---|---|---|---|---|
| 6mm | 8mm | 10mm | 12mm | ||
| Parallel Perf | 16mm | 5116-06 | 5116-08 | 5116-10 | 5116-12 |
| 23mm | 5123-06 | 5123-08 | 5123-10 | 5123-12 | |
| 32mm | 5132-06 | 5132-08 | 5132-10 | 5132-12 | |
| Staggered Perf | 16mm | 5216-06 | 5216-08 | 5216-10 | 5216-12 |
| 23mm | 5223-06 | 5223-08 | 5223-10 | 5223-12 | |
| 32mm | 5232-06 | 5232-08 | 5232-10 | 5232-12 | |
| Diamond Perf | 16mm | 5316-06 | 5316-08 | 5316-10 | 5316-12 |
| 23mm | 5323-06 | 5323-08 | 5323-10 | 5323-12 | |
| Diamond Perf | 32mm | 5332-06 | 5332-08 | 5332-10 | 5332-12 |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
