2100 Panelized Linear

March 14, 2019

About andrewcox

2100 Panelized Linear

Stunning results, seismic compliance and straightforward installation.

The 9Wood Panelized Linear style wood ceiling offers a design where the individual wood member is wider than it is deep. The standard panel width is 12″. Standard panel lengths are 4′, 6′, 8′, or 10′ (nominal) for solid wood. Veneers with matching edge banding are frequently used in 8′ lengths. Cost budgets are typically the decision driver. Both perform well.

The Panelized Linear uses a pre-assembled panel fabrication process. This product can be installed throughout the country and is the preferred design in areas requiring seismic compliance. Full panel access is available by means of removing attachment screws hidden in reveals. Repetitive removal requires threaded 9Wood T-Bolt attachment as opposed to screws.

9Wood 2100 Panelized Linear at BIGHORN Clubhouse, Palm Desert, California.
9Wood 2100 Panelized Linear at Newport Beach Civic Center, Newport Beach, California. Bohlin Cywinski Jackson.
9Wood 2100 Panelized Linear at UBC Buchanan Café, Vancouver, British Columbia. Perkins + Will. Photo: ChrisBarton.Photography.
9Wood 2100 Panelized Linear at UO Allan Price Science Commons, Eugene, Oregon. Opsis Architecture.

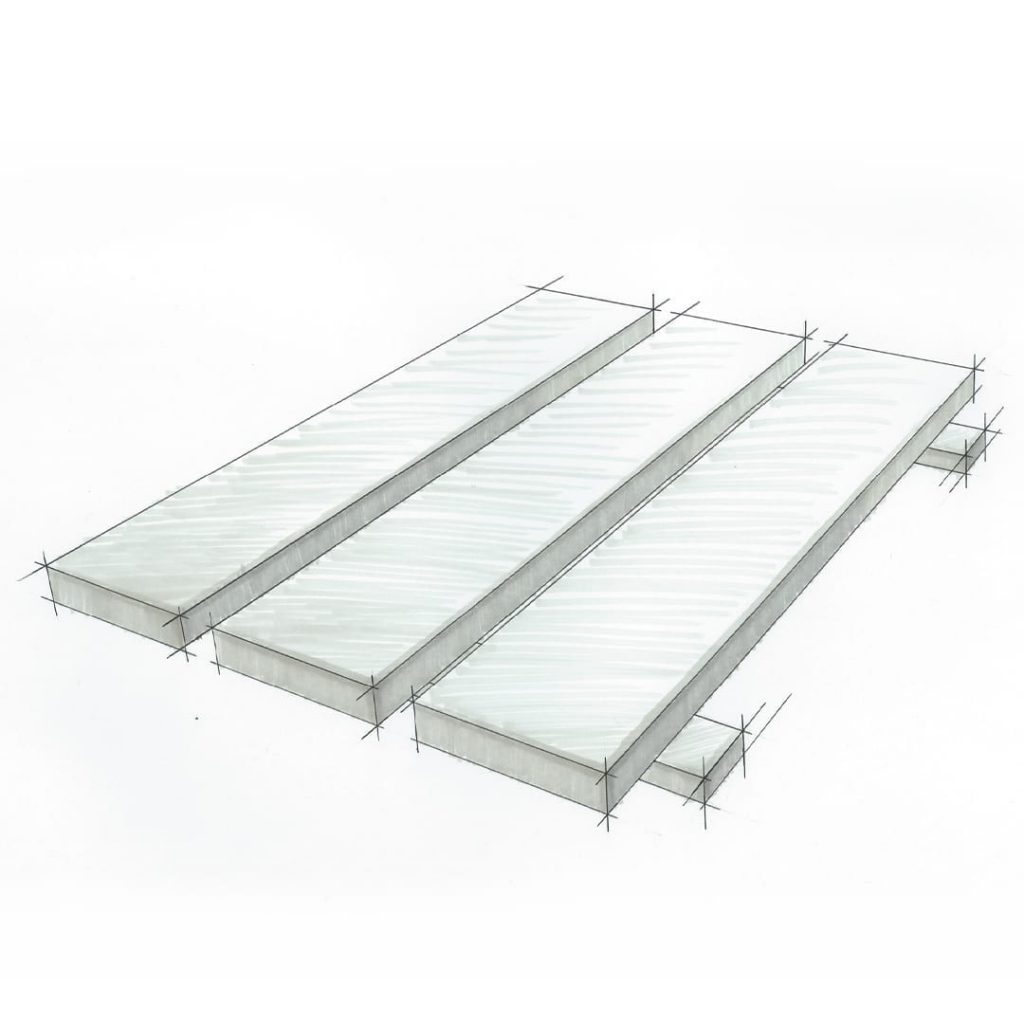

9Wood 2100 Panelized Linear Sketch.
9Wood 2100 Panelized Linear.
9Wood 2100 Panelized Linear Hemlock with Walnut Stain.

Download Documents

DATA SHEET

Download Now

GUIDE SPEC

Download Now

CAD DETAILS

View All

ACOUSTIC TESTS

View All

SPECIFICATIONS
& PERFORMANCE

BELOW

SPECIES &
FINISHES

VIEW

REQUEST
SAMPLES

SUBMIT

FULL
LIBRARY

VISIT

Acclimatization

Panelized Linears must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.

Acoustics

The Panelized Linear can enhance acoustics via sound absorbing material placed over open reveals within the T-Bar grid. Insulation is typically provided locally.

Fire Rating

Individual members and components can be coated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.

LEED

Panelized Linears may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.

MEP

The Panelized Linear permits MEP penetrations in the ceiling’s surface. Cut panels may require supplemental reinforcement. Fixtures and diff users must be independently supported.

Seismic

Panelized Linear styles provide seismic code compliance by means of mechanical direct screw attachment to T-Bar grid via the cross-piece backer. Consult local code for any additional requirements or a licensed engineer.

Species & Finishes

9Wood offers both domestic and imported species for the Panelized Linear. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.

Suspension

Panelized Linears are directly attached to 15/16″ heavy duty T-Bar main runners. Main runners are typically 2′ on center.

System Weight

Panelized Linears typically weigh 2-4 pounds per square foot, depending on members per linear foot and species.

Projects Featuring this System

Rainier Beach Community Center

Seattle, WA

Rainier Beach Community Center

Seattle, WA

University of Oregon Allan Price Science Commons

Eugene, OR

University of Oregon Allan Price Science Commons

Eugene, OR

Texas State University - Alkek Library, Wittliff Collections

San Marcos, TX

Texas State University - Alkek Library, Wittliff Collections

San Marcos, TX
