2400 T & G Linear
The random lengths and joints of this tongue & groove celebrates the traditional feel of solid wood.
The 9Wood Tongue and Groove Linear style wood ceiling offers the classic linear ceiling design where the individual wood members abut with a “V” groove accenting the edge-to-edge joint. Members are installed randomly to create a continuous look. The Tongue and Groove linear system is provided in random lengths to maximize material yield.
The Tongue and Groove Linear provides the classic “V” Groove closed reveal look and creates a continuous, monolithic ceiling field. Access can be through strategically located access panels or from room perimeters. Members are clipped to T-Bar main runners progressively.
T & G Linears must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.
The T & G Linear is considered acoustically reflective.
Individual members and components can be treated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.
T & G Linears may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.
The T & G Linear permits MEP penetrations in the ceiling's surface. Cut panels may require supplemental reinforcement. Fixtures and diffusers must be independently supported.
Clips are typically mechanically screwed to T-Bar for seismic compliance. Please consult local code or a licensed engineer for any additional requirements.
Species & Finishes
9Wood offers both domestic and imported species for the T & G Linear. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.

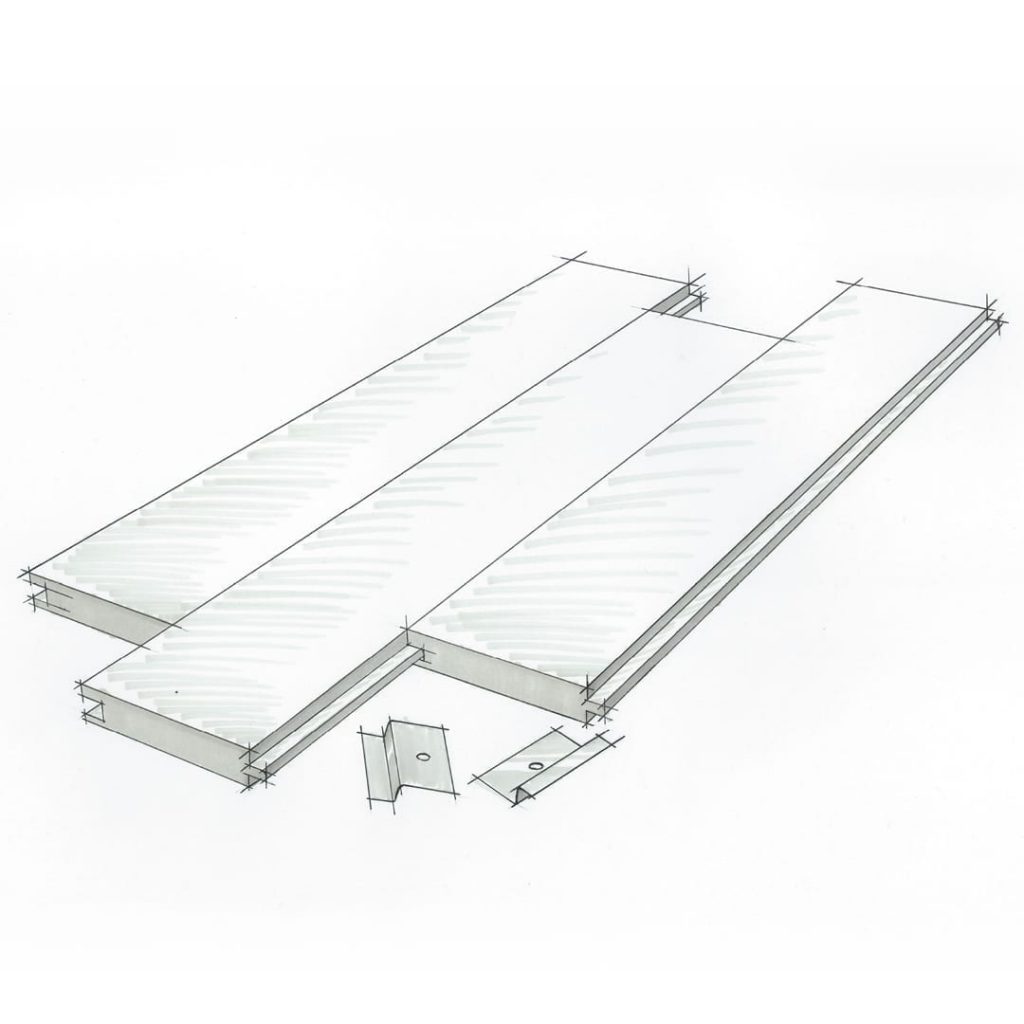

T & G Linears are attached to 15/16" heavy duty T-Bar main runners via clips and screws. Main runners are typically 2' on center.
T & G Linears typically weigh 2-4 pounds per square foot, depending on members per linear foot and species.
