1200 Dowel Grille
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!
Product Description
Alvar Aalto’s classic touch is seen in 9Wood’s Dowel Grille. Its design lineage makes it timeless.

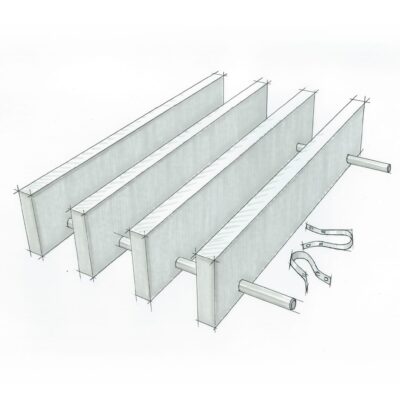

The Dowel Grille uses a pre-assembled panel fabrication process. The 1200 Dowel Grille style is often specified for member depths greater than 3” to provide greater structural integrity. This product is easily accessible and installs efficiently to T-Bar grid via a dowel clip. The 1200 Dowel Grille Style should be considered when frequent accessibility is required or when deep members (>3”) are desired.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
|---|
|
|
1212-2 | Dowel Grille | Solid | Detail (CAD) | Revit | |
|
|
1212-3 | Dowel Grille | Solid | Detail (CAD) | Revit | |
|
|
1212-4 | Dowel Grille | Solid | Detail (CAD) | Revit | |
|
|
1212-5 | Dowel Grille | Solid | Detail (CAD) | Revit | |
|
|
1212-6 | Dowel Grille | Solid | Detail (CAD) | Revit |
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
| Width | Depth | Grille Members per Linear Foot | ||||||
|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||
| 3/4" | 1 3/8" | 1212-2 | 1212-3 | 1212-4 | 1212-5 | 1212-6 | 1212-7 | 1212-8 |
| 3/4" | 2 1/4" | 1213-2 | 1213-3 | 1213-4 | 1213-5 | 1213-6 | 1213-7 | 1213-8 |
| 3/4" | 3 1/4" | 1214-2 | 1214-3 | 1214-4 | 1214-5 | 1214-6 | ||
| 3/4" | 5 1/4" | 1216-2 | 1216-3 | |||||
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
