1500 Baffle
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!
Product Description
Bring a visual definition of large, vertically-oriented members free of t-bar, backers, or other cross-members.

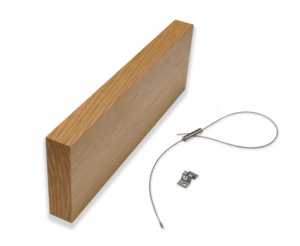

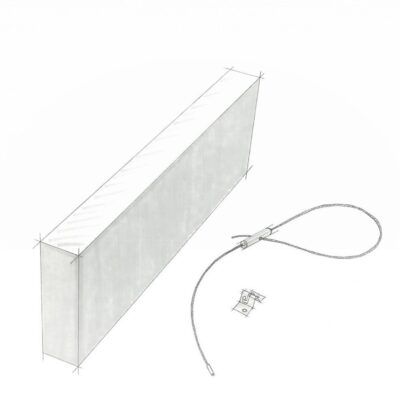

The 9Wood Baffle uses a pre-fabricated, veneered member with factory-attached clips for field-attachment of 9Wood aircraft cable. Baffles are attached via aircraft cable and hex-plug, which is inserted into baffle clips. Aircraft cable is adjustable via a pre-attached cable gripper. Baffles are suspended with a max span of 4’ between baffle clips in order to support weight of members. Factory-provided locking biscuit clips snap in place to allow for wood movement across longer span.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
|---|
|
|
1516-1 | Baffle | Solid | Detail (CAD) | ||
|
|
1518-1 | Baffle | Solid | Detail (CAD) | ||
|
|
1528-1 | Baffle | Veneer | Revit | ||
|
|
15112-1 | Baffle | Solid | Detail (CAD) | ||
|
|
15X1 | Baffle | Solid | Detail (CAD) |
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
HPD
Published Health Product Declarations
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
| Width | Depth |
|---|---|
| 5-3/4" | |
| 1-7/16" | 1526-1 |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
