2700 Kerf Reveal Linear
Hardwood Core
Fire Rated (Class A)
1 year Warranty
Ceiling, Wall
Accommodates Point Lighting, Penetrations
Progressive
Low Sound Transmission
Factory Stained, Factory Finished, Matte
09.50.00 – Ceilings
Custom Stain Matching
Closed System
3 lbs/sf
Z-Clip
FSC Certified
Interior
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!
Product Description
9Wood’s most cost-effective linear gives definition to veneered plank modules with a 1/16” width channel groove. Clean, versatile, and stunning.

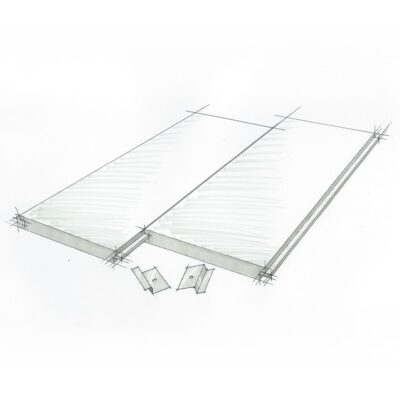

The 9Wood Kerf Reveal Linear style wood ceiling offers a design where the individual wood members abut with a kerfed edge-to-edge profile. Members are installed randomly to create a continuous look. Due to required fabrication tolerances for kerfed joinery, engineered veneered wood composites are used. Member lengths are 8′ to maximize yield of veneered sheet goods.
The Kerf Reveal Linear provides a planked look. Access can be through strategically located access panels or from room perimeters. Members are clipped to T-Bar main runners progressively
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
|---|
|
|
2714-3 | Kerf Reveal Linear | Solid | Detail (CAD) | ||
|
|
2714-4 | Kerf Reveal Linear | Solid | Detail (CAD) | Revit | |
|
|
2715-3 | Kerf Reveal Linear | Veneer | Detail (CAD) | Revit | |
|
|
2717-2 | Kerf Reveal Linear | Veneer | Detail (CAD) | Revit | |
|
|
2719-2 | Kerf Reveal Linear | Veneer | Revit |
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
| Width | Depth | Members per Linear Foot | |
|---|---|---|---|
| 2 | 3 | ||
| 3/4" | 4 1/2" | 2715-3 | |
| 3/4" | 6 1/2" | 2717-2 | |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
