4100 Tegular Tile

Hardwood Core

Fire Rated (Class A)

1 year Warranty

Ceiling

Accommodates Point Lighting, Penetrations

Panelized

Low Sound Transmission

Accommodates Point Lighting, Access Panels

Factory Stained, Factory Finished, Matte

09.50.00 – Ceilings

Custom Stain Matching

Closed System

3 lbs/sf

Tegular Clips
FSC Certified
Interior
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!

Product Description
This classic system provides a fabulous look with real wood veneer for tiles up to 2’x2′ and is simple to install and access.

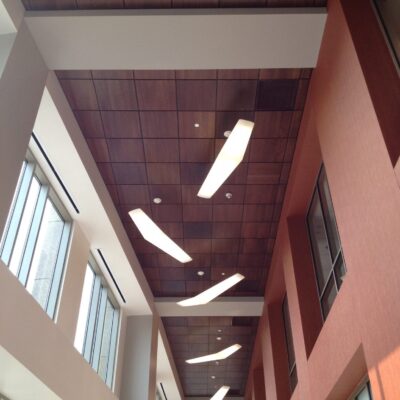

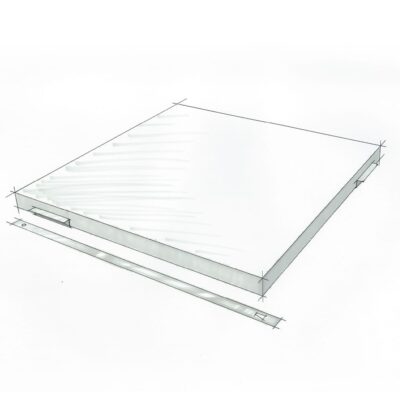

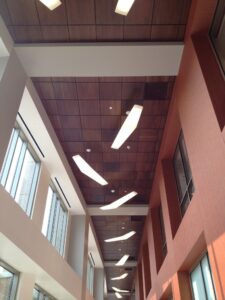

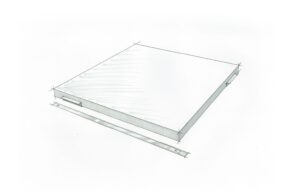

The 9Wood Tegular Tile wood ceiling offers a tiled appearance. The 4100 style Tegular Tile hangs from and is accented by 15/16″ standard black T-Grid. Reveals between panels are created by the width of the T-Bar flange (i.e., 15/16″).
The Tegular Tile provides a modular tiled (Latin tegular) look. The T-Bar creates a reveal or, can be capped with wood for an accented border. Tiles are fabricated using real wood veneers on fire rated cores. This is a highly accessible system, with simple lift, shift and remove accessibility. In seismic zones it requires a safety-wire tie-off or lock-down screws. Tiles may be perforated (see series 5000 Perforated Wood Tiles).
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
---|
|
4100 - NET ADJUST | Tegular Tile | Veneer | Revit | ||
|
4124-24 | Tegular Tile | Veneer | Detail (CAD) | Revit | |
|
4124-48 | Tegular Tile | Veneer | Revit | ||
|
4148-48 | Tegular Tile | Veneer | Revit |
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
Tile Width | Tile Length (Parallel to Grain Direction) | |
---|---|---|
24" | 48" | |
24" | 4124-24 | 4124-48 |
48" | 4148-48 |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
