4900 Wall Tile
Fir Veneer NAF Plywood Core
Publicly Available
Class A per ASTM E84
1 year Warranty
Wall
Accommodates Penetrations
Panelized
1' x 2' – 4' x 8' @ 1' Nominal Increments
Partially Accessible System
Factory Stained, Factory Finished, Matte
09.54.26 – Linear Wood Ceilings
Standard and Custom Stain Matching
Closed System – 3/8" Reveals
4 lbs/sf
Clip / Rail
FSC Certified
Interior Only
Up to 4' x 8' Nominal
Applications
Customize. Visualize. Build.
Turn ideas into reality with 9Wood’s Material Studio. Adjust, preview, and calculate costs instantly. Try it now!
Product Description

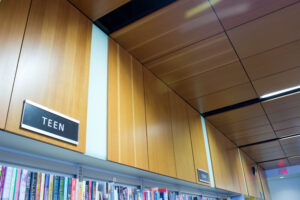

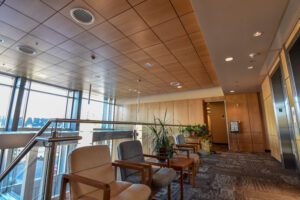

4900 Wall Tile is a concealed attachment wood wall system that creates a clean, panelized wood surface with crisp reveals. Factory-attached Monarch Clips engage field-installed Monarch Rails, allowing tiles to install in sequence while maintaining a refined architectural look in a range of sizes, species, and finishes.

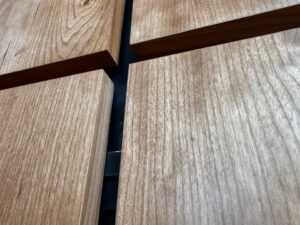

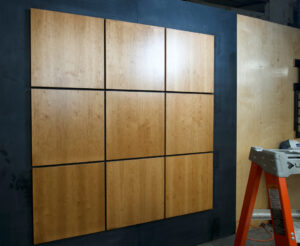

The 4900 Wall Tile wood wall system offers a tiled appearance. The 4900 Wall Tile mounts to the wall using factory-attached Monarch Clips and field-installed Monarch Rails. Standard 3/8″ reveals between panels create a clean panelized look.
Matching edge banding is applied to all four edges of the tiles and Wall Tiles are available in a variety of sizes.

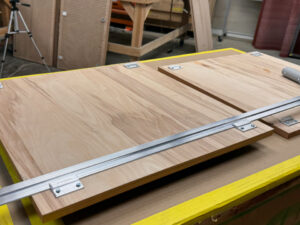

Attachment for the Wall Tile is via a clip-and-rail installation, supported by 9Wood’s Monarch Clip and Monarch Rail.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
|---|
|
|
4924-24 | Wall Tile | Veneer | Detail (CAD) | ||
|
|
49-4524-24 | Wall Tile | Veneer | Detail (CAD) | ||
|
|
49-4524-48 | Wall Tile | Veneer | Detail (CAD) |
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
