4100 Tegular Tile

This classic system provides a fabulous look for tiles up to 2’x2′ and is a snap to install and access.

The 9Wood Tegular Tile wood ceiling offers a tiled appearance. The 4100 style Tegular Tile hangs from and is accented by 15/16″ standard black T-Grid. Reveals between panels are created by the width of the T-Bar flange (i.e., 15/16″).

The Tegular Tile provides a modular tiled (Latin tegular) look. The T-Bar creates a reveal or, can be capped with wood for an accented border. Tiles are fabricated using real wood veneers on fire rated cores. This is a highly accessible system, with simple lift, shift and remove accessibility. In seismic zones it requires a safety-wire tie-off or lock-down screws. Tiles may be perforated (see series 5000 Perforated Wood Tiles).

9Wood 4100 Tegular Tile at Nazareth College - Smyth Hall, Rochester, New York. SWBR Architects.
9Wood 4100 Tegular Tile at Eastman Savings & Loan, Rochester, New York. Labella Associates.

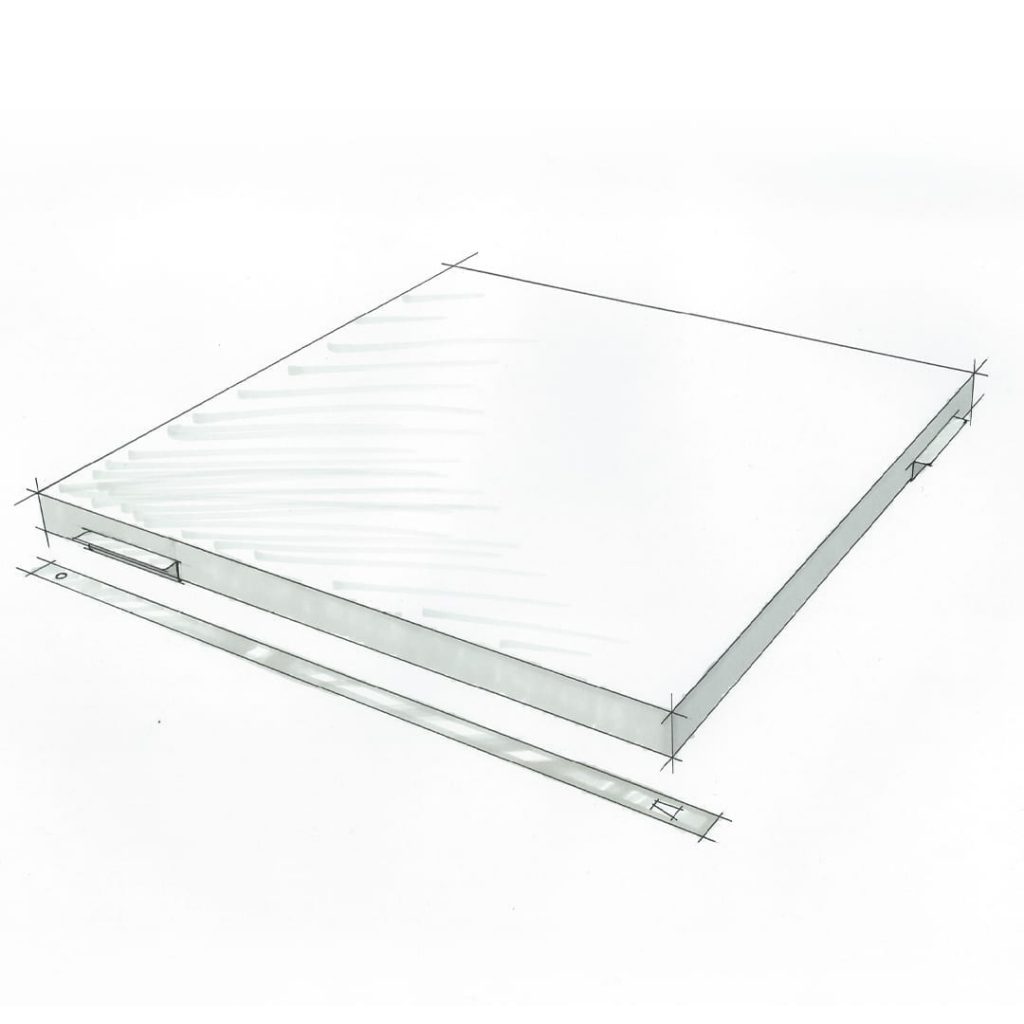

9Wood 4100 Tegular Tile Sketch.
9Wood 4100 Tegular Tile.

Download Documents

DATA SHEET

Download Now

GUIDE SPEC

Download Now

CAD DETAILS

View All

ACOUSTIC TESTS

View All

SPECIFICATIONS
& PERFORMANCE

BELOW

SPECIES &
FINISHES

VIEW

REQUEST
SAMPLES

SUBMIT

FULL
LIBRARY

VISIT

Acclimatization

Tegular Tiles must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.

Acoustics

The Tegular Tile is considered acoustically reflective.

Fire Rating

Individual members and components can be coated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.

LEED

Tegular Tiles may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.

MEP

The Tegular Tile permits MEP penetrations in the ceiling’s surface. Cut panels may require supplemental reinforcement. Fixtures and diffusers must be independently supported.

Seismic

Tegular Tiles may require a safety wire tie-off or screw-locks to T-Bar. Please consult local code or a licensed engineer for any additional requirements.

Species & Finishes

9Wood offers both domestic and imported species for the Tegular Tile. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.

Suspension

Tegular Tiles are suspended from 15/16″ heavy duty T-Bar main runners. Main runners are typically 2′ on center.

System Weight

Tegular Tiles typically weigh 3 pounds per square foot or less.
