4500 XL Channel Tile

About andrewcox

4500 XL Channel Tile

Think big. Suspend tiles up to 4′ x 8′ with confidence and grace. Accessibility options available.

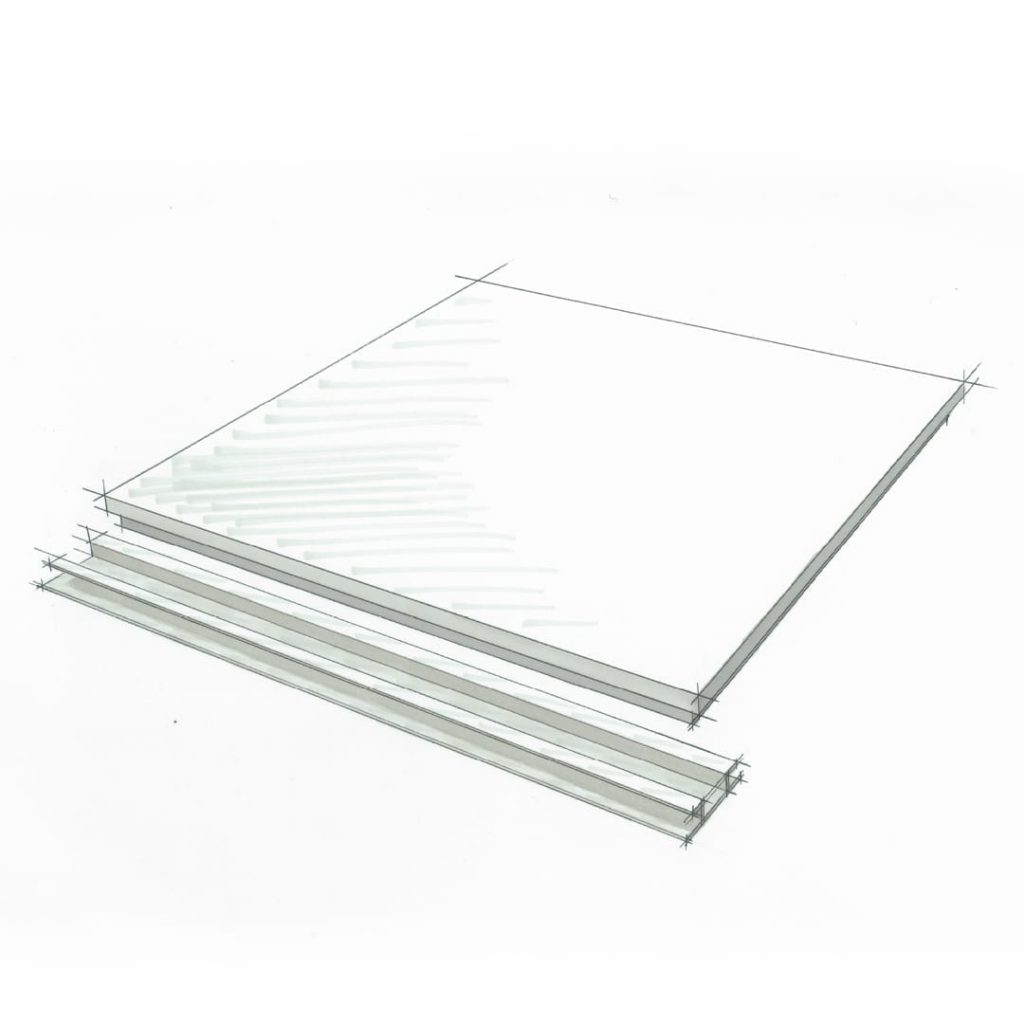

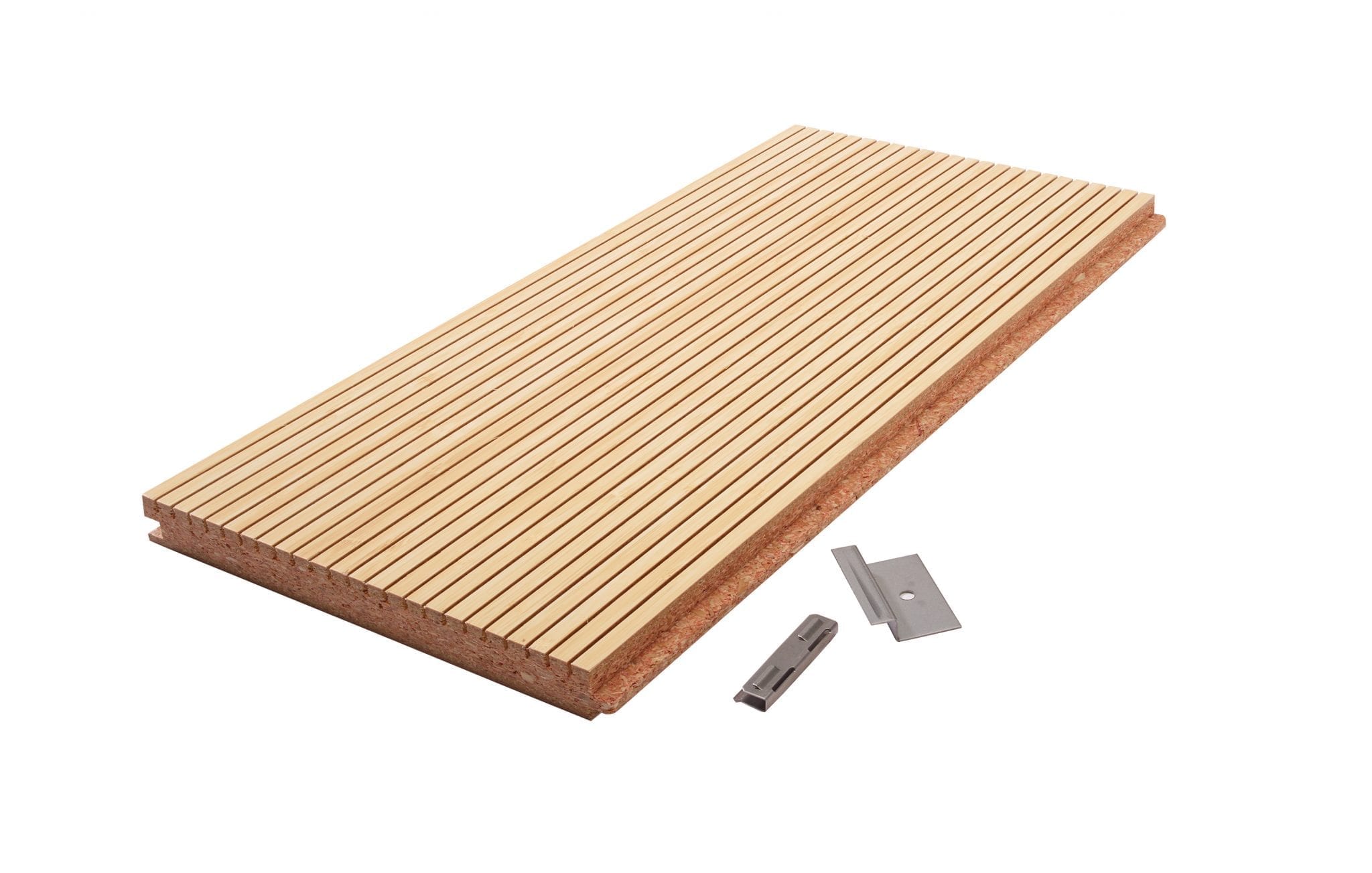

Designed with large wood panels in mind, the 9Wood XL Channel Tile wood ceiling offers a floating tiled appearance. The 4500 style installs progressively using perimeter extrusion clips (XL Channel). Minimum reveals are 3/8″ typ., permitting a concealed suspension.

The XL Channel Tile provides large panel suspension while maintaining a floating tiled look with concealed suspension using real wood veneers on fire rated cores. Access can be achieved through strategically located access panels or from room perimeters. XL Channel is seismically compliant. Tiles may be perforated (see series 5000 Perforated Wood Tiles).

Download Documents

DATA SHEET

Download Now

GUIDE SPEC

Download Now

CAD DETAILS

View All

ACOUSTIC TESTS

View All

SPECIFICATIONS
& PERFORMANCE

BELOW

SPECIES &
FINISHES

VIEW

REQUEST
SAMPLES

SUBMIT

FULL
LIBRARY

VISIT

Acclimatization

XL Channel Tiles must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.

Acoustics

The XL Channel Tile is considered acoustically reflective.

Fire Rating

Individual members and components can be coated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.

LEED

XL Channel Tiles may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.

MEP

The XL Channel Tile permits MEP penetrations in the ceiling’s surface. Cut panels may require supplemental reinforcement. Fixtures and diffusers must be independently supported.

Seismic

XL Channel tiles provide seismic code compliance by means of mechanical direct screw attachment to T-Bar grid via the XL Channel extrusion. Consult local code for any additional requirements or a licensed engineer.

Species & Finishes

9Wood offers both domestic and imported species for the XL Channel Tile. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.

Suspension

XL Channel Tiles are suspended from 15/16″ heavy duty T-Bar main runners. Main runners are typically 2′ on center.

System Weight

XL Channel Tiles typically weigh 3 pounds per square foot or less.
