8200 Linear Wood Wave

March 14, 2019

About andrewcox

8200 Linear Wood Wave

Substance and flexibility unite with Linear Wood Wave. Even with wood, you can bend the rules.

The 9Wood Linear Wave style wood ceiling offers a flexible wood linear design for a vaulted or undulating ceiling. The standard panel width is 12″. Standard panel lengths are 4′, 6′, 8′, or 10′ (nominal) for solid wood. Veneers with matching edge banding are frequently used in 8′ lengths. Cost budgets are typically the decision driver. Both perform well.

The Linear Wave uses a pre-assembled flexible panel. A curved suspension system is first installed (curved T-Bar or radiused tubing). Then the panels are flexed and married to the radiused suspension system using screws. This product can be installed throughout the country and is the preferred design in areas requiring seismic compliance. Full panel access is available by means of removing attachment screws hidden in reveals. Repetitive removal requires threaded 9Wood T-Bolt™ attachment as opposed to screws. Progressive linear installation systems for random joint placement are also available.

9Wood 8200 Linear Wood Wave at DPR Offices, San Jose, California. DPR.
9Wood 8200 Linear Wood Wave at Bellarmine Preparatory - Sobrato Center, San Jose, California. Steinberg Hart.

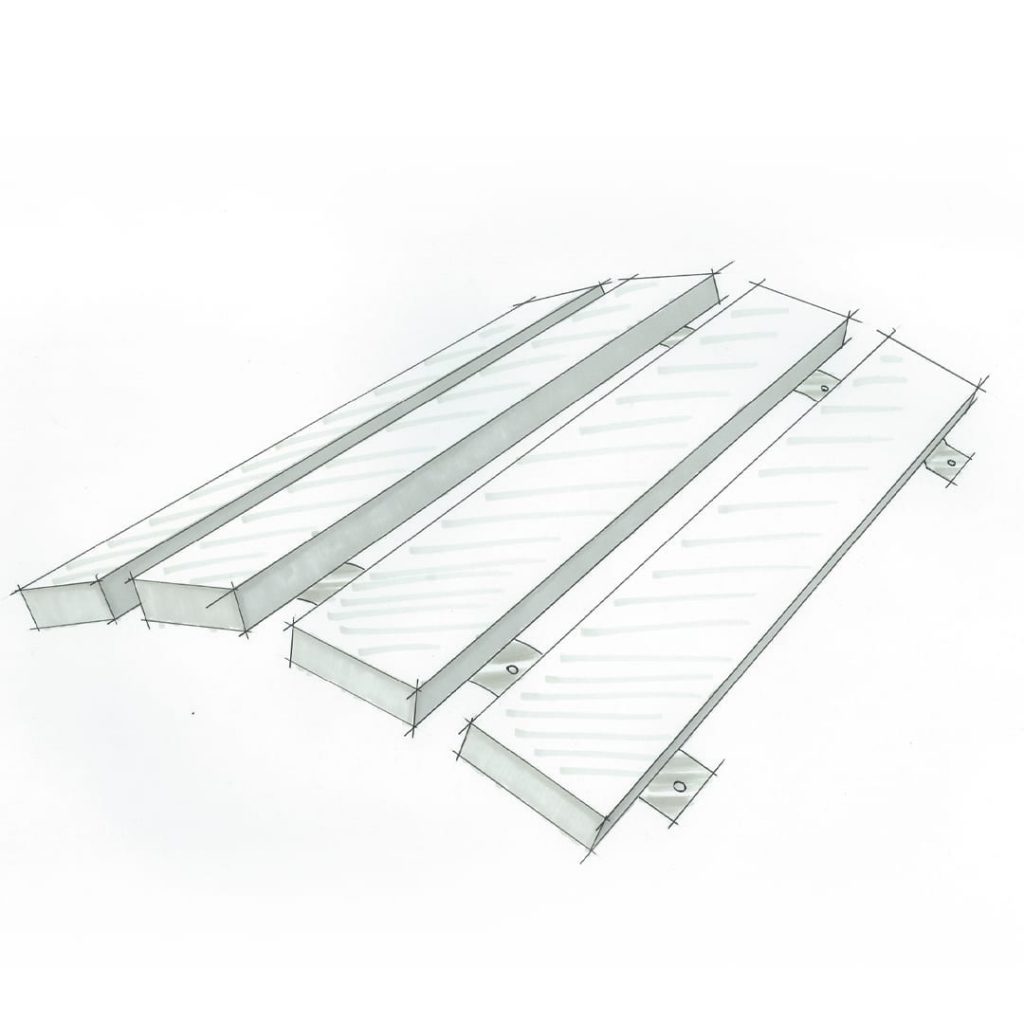

9Wood 8200 Linear Wood Wave Sketch.
9Wood 8200 Linear Wood Wave.

Download Documents

DATA SHEET

Download Now

GUIDE SPEC

Download Now

CAD DETAILS

View All

ACOUSTIC TESTS

View All

SPECIFICATIONS
& PERFORMANCE

BELOW

SPECIES &
FINISHES

VIEW

REQUEST
SAMPLES

SUBMIT

FULL
LIBRARY

VISIT

Acclimatization

Linear Wood Waves must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.

Acoustics

The Linear Wood Wave can enhance acoustics via sound absorbing material placed over open reveals within the T-Bar grid. Insulation is typically provided locally.

Fire Rating

Individual members and components can be treated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.

LEED

Linear Wood Waves may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.

MEP

The Linear Wood Wave permits MEP penetrations in the ceiling’s surface. Cut panels may require supplemental reinforcement. Fixtures and diffusers must be independently supported.

Seismic

Flexible Crosspiece Backers provide seismic code compliance by means of mechanical direct screw attachment to T-Bar via the flexible cross-piece backer. Please consult local code or a licensed engineer for any additional requirements.

Species & Finishes

9Wood offers both domestic and imported species for the Linear Wood Wave. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.

Suspension

Linear Wood Waves are directly attached to curved 15/16″ T-Bar main runners or radiused 1″ x 1″ tubing. T-Bar or tubing is typically 2′ on center.

System Weight

Linear Wood Waves typically weigh 2-4 pounds per square foot, depending on members per linear foot and species.

Projects Featuring this System

The Triangle Building

Denver, CO

The Triangle Building

Denver, CO

Blue Cross Blue Shield HQ

Richardson, TX

Blue Cross Blue Shield HQ

Richardson, TX

St. Thomas Elementary

Medina, WA

St. Thomas Elementary

Medina, WA
