8500 Perf Wood Wave

March 14, 2019

About andrewcox

8500 Perf Wood Wave

These tiles provide acoustic control for radiused ceiling designs. Choose your perforation pattern.

The 9Wood Perforated Wood Tile style wood ceiling offers a variety of perforated patterns for radiused wood tile designs for vaulted ceilings. The standard perforation pattern groups are parallel, staggered and diamond.

The Perforated Wood Tile is used in spaces where a both vaulted designs requiring acoustical absorption by means of percent open area is desired. Suspension methods follow the style 8400 Wood Waves, typically Torsion Spring or Lift & Lock™.

9Wood 8500 Perf Wood Wave at Onondaga Community College, Syracuse, New York. JMZ Architects and Planners.

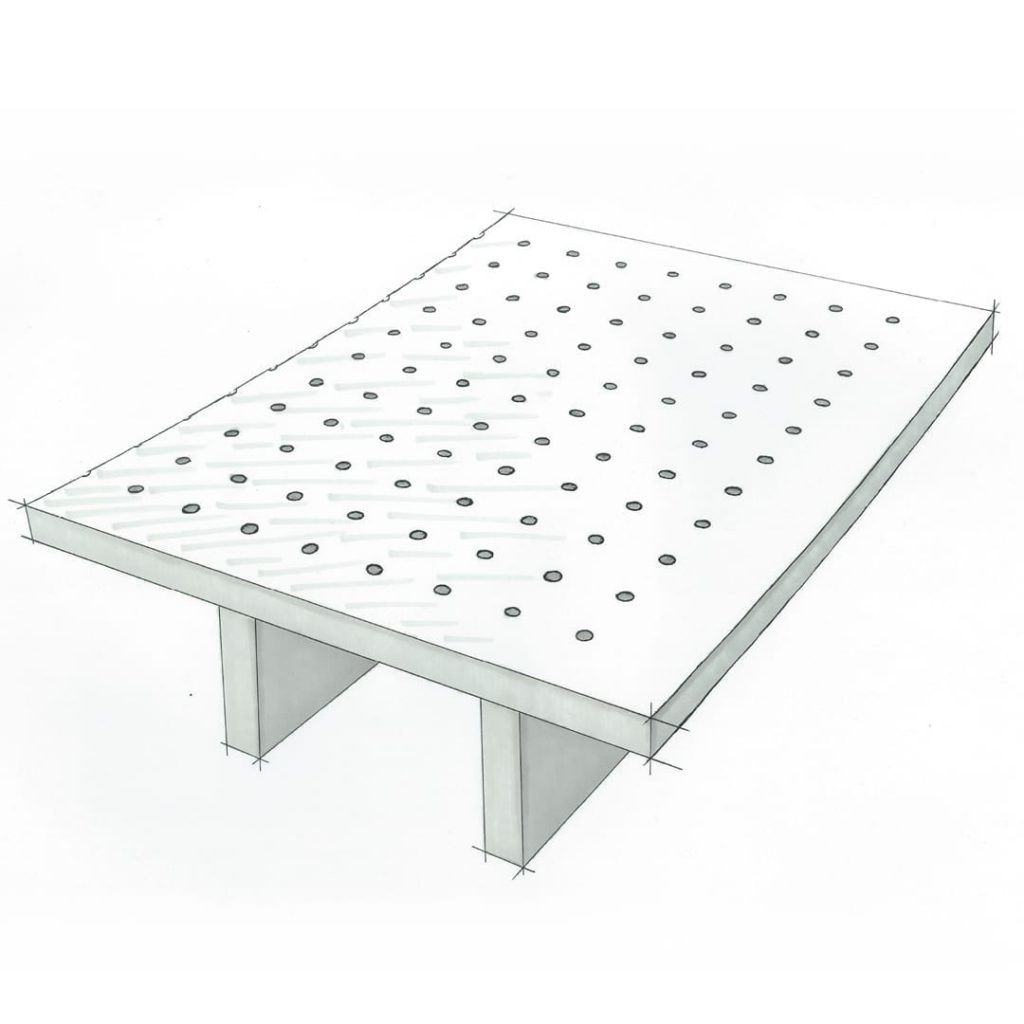

9Wood 8500 Perf Wood Wave Sketch.
9Wood 8500 Perf Wood Wave.

Download Documents

DATA SHEET

Download Now

GUIDE SPEC

Download Now

CAD DETAILS

View All

ACOUSTIC TESTS

View All

SPECIFICATIONS
& PERFORMANCE

BELOW

SPECIES &
FINISHES

VIEW

REQUEST
SAMPLES

SUBMIT

FULL
LIBRARY

VISIT

Acclimatization

Perf Wood Waves must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.

Acoustics

The Perf Wood Wave can enhance acoustics via sound absorbing material placed over open reveals within the T-Bar grid. Insulation is typically provided locally.

Fire Rating

Individual members and components can be treated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.

LEED

Perf Wood Waves may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.

MEP

The Perf Wood Wave permits MEP penetrations in the ceiling’s surface. Cut panels may require supplemental reinforcement. Fixtures and diffusers must be independently supported.

Seismic

Perf Wood Waves can be engineered to meet seismic requirements. Please consult local code or a licensed engineer for any additional requirements.

Species & Finishes

9Wood offers both domestic and imported species for the Perf Wood Wave. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.

Suspension

Perf Wood Waves are directly attached to curved 15/16″ T-Bar main runners or radiused 1″ x 1″ tubing. T-Bar or tubing is typically 2′ on center.

System Weight

Perf Wood Waves typically weigh 4 pounds per square foot or less.

Projects Featuring this System

Onondaga Community College - Coulter Library

Syracuse, NY

Onondaga Community College - Coulter Library

Syracuse, NY
