4600 True Access Tile

Hardwood Core

Fire Rated (Class A)

1 year Warranty

Ceiling

Accommodates Point Lighting, Penetrations

Panelized

Low Sound Transmission

Accommodates Point Lighting, Access Panels

Factory Stained, Factory Finished, Matte

09.50.00 – Ceilings

Custom Stain Matching

Closed System

4 lbs/sf

True Access

FSC Certified

Interior
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!

Product Description

The most accessible wood tile suspension system available. Every panel is accessible without the use of tools or jeopardizing reveals between tiles.

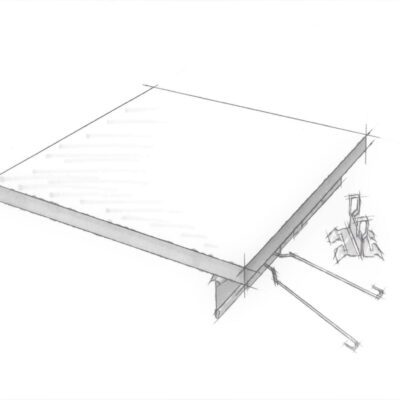

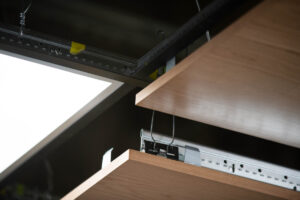

The 4600 True Access Tile combines a floating wood tile design with the function of a fully accessible system. Every panel is accessible without the use of tools or fasteners. True reveals are maintained after every return with alignment clips gliding panels back into place. This means your ceiling won’t get bent out of shape over time while throughways remain unnoticed to occupants.
Tiles are real wood veneers on fire-rated cores, usually achieving a floating tiled look that can completely conceal the suspension system above. Designers can specify acoustic or perforated tile faces (see 3000 or 5000 series) and custom color and/or specie combinations are encouraged. Hardware configuration eases installation tolerances, making it easier for contractors to get it right the first time. Tiles must be suspended on HD 15/16” T-bar grid and are ready to be engineered for seismic compliance.
Performance Data

Data Sheet
Data sheets provide a high level overview of product systems and their limitations

Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations

Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field

Fire Rating
Certifications for Class A fire rating documentation

Detail Download
A collection of addition detail elements related to this product system
Models
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
---|
|
4600 - NET ADJUST | True Access Tile | Veneer | Revit | ||
|
4624-24 | True Access Tile | Veneer | Detail (CAD) | Revit | |
|
4624-48 | True Access Tile | Veneer | Detail (CAD) | Revit | |
|
4648-48 | True Access Tile | Veneer | Detail (CAD) | Revit |
Sustainability

Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems

EPD
Published Environmental Product Declarations

Certification
For certified wood and chain of custody information

Documents Download
A collection of addition detail elements related to this product system
SKU Table
Tile Width | Tile Length (Parallel to Grain Direction) | |
---|---|---|
24" | 48" | |
24" | 4624-24 | 4624-48 |
48" | 4648-48 |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
