5200 Staggered Perf Tile
Hardwood Core
Fire Rated (Class A)
Ceiling
Accommodates Point Lighting, Penetrations
Panelized
Low Sound Transmission
Accommodates Point Lighting, Sprinkler Heads
Factory Stained, Factory Finished, Matte
Custom Stain Matching
Open Perforation with Scrim
4 lbs/sf
Thru-Perf
FSC Certified
Interior
Applications
Customize. Visualize. Build.
Turn ideas into reality with our Custom Made Fast Configurator. Adjust, preview, and calculate costs instantly. Try it now!
Product Description
Staggered perforations create a vibrant appearance and exceptional acoustic performance.

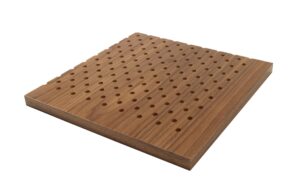

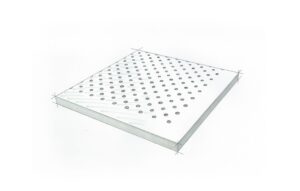

The 9Wood Staggered Perforated Pattern style wood ceiling tiles offer a perforated tiled appearance with a staggered (or 45°) perforation pattern and a non-perforated border. The 5200 Style Staggered Perforated Pattern is installed using any of the 4000 Series Wood Tile suspension methods.
The Staggered Perforated Pattern permits acoustic attenuation. Accessibility is determined by attachment method.
Performance Data
Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Legacy Data Sheet
Data sheets provide a high level overview of product systems and their limitations
Install Guides
For contractors and architects learning to understand how to install and configure products systems in the field
Fire Rating
Certifications for Class A fire rating documentation
Detail Download
A collection of addition detail elements related to this product system
Models
|
|
SKU | Style | Core | CAD Packet | CAD PDF | Revit Family |
|---|
Sustainability
Sustainability
Data Sheet
Product systems and their applicability for LEED and Green Building Systems
HPD
Published Health Product Declarations
EPD
Published Environmental Product Declarations
Certification
For certified wood and chain of custody information
Documents Download
A collection of addition detail elements related to this product system
SKU Table
| Perf Spacing | Perf Diameter | |||
|---|---|---|---|---|
| 6mm | 8mm | 10mm | 12mm | |
| 16mm | 5216-06 | 5216-08 | ||
| 23mm | 5223-06 | 5223-08 | 5223-10 | 5223-12 |
| 32mm | 5232-06 | 5232-08 | 5232-10 | 5232-12 |
Additional width, depth, and M/LF options may be available. Please check with 9Wood if you don’t see the combination that you have in mind.
