2700 Kerf Reveal Linear

9Wood’s most cost-effective linear gives definition to veneered plank modules with a 1/16” width channel groove. Clean, versatile, and stunning.

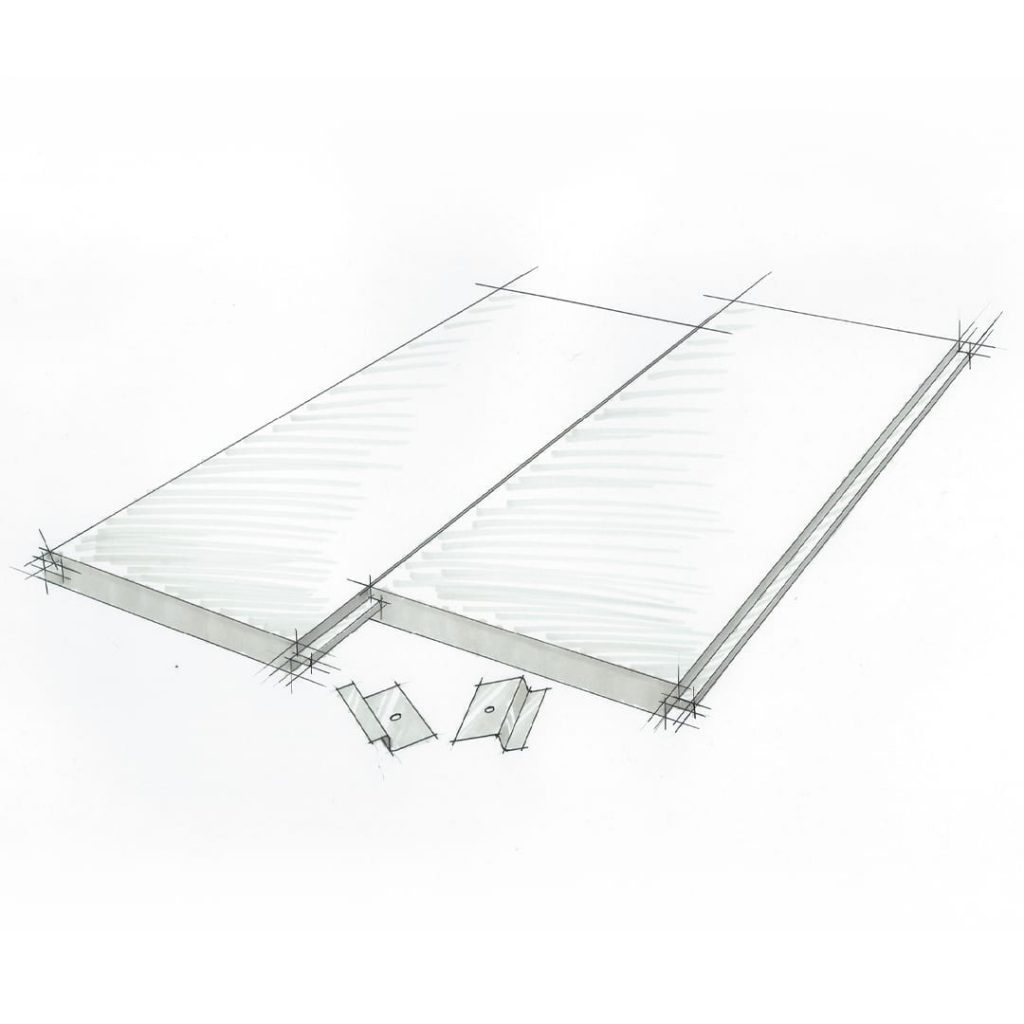

The 9Wood Kerf Reveal Linear style wood ceiling offers a design where the individual wood members abut with a kerfed edge-to-edge profile. Members are installed randomly to create a continuous look. Due to required fabrication tolerances for kerfed joinery, engineered veneered wood composites are used. Member lengths are 8′ to maximize yield of veneered sheet goods.

The Kerf Reveal Linear provides a planked look. Access can be through strategically located access panels or from room perimeters. Members are clipped to T-Bar main runners progressively.

Download Documents

DATA SHEET

Download Now

GUIDE SPEC

Download Now

CAD DETAILS

View All

ACOUSTIC TESTS

View All

SPECIFICATIONS
& PERFORMANCE

BELOW

SPECIES &
FINISHES

VIEW

REQUEST
SAMPLES

SUBMIT

FULL
LIBRARY

VISIT

Acclimatization

Kerf Reveal Linears must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.

Acoustics

The Kerf Reveal Linear is considered acoustically reflective.

Fire Rating

Individual members and components can be coated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.

LEED

Kerf Reveal Linears may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.

MEP

The Kerf Reveal Linear permits MEP penetrations in the ceiling’s surface. Cut panels may require supplemental reinforcement. Fixtures and diffusers must be independently supported.

Seismic

Clips are typically mechanically screwed to T-Bar for seismic compliance. Please consult local code or a licensed engineer for any additional requirements.

Species & Finishes

9Wood offers both domestic and imported species for the Kerf Reveal Linear. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.

Suspension

Kerf Reveal Linears are directly attached to 15/16″ heavy duty T-Bar main runners. Main runners are typically 2′ on center.

System Weight

Kerf Reveal Linears typically weigh 3 pounds per square foot or less.
