5200 Staggered Perf Tile
Staggered perforations create a vibrant appearance and exceptional acoustic performance.

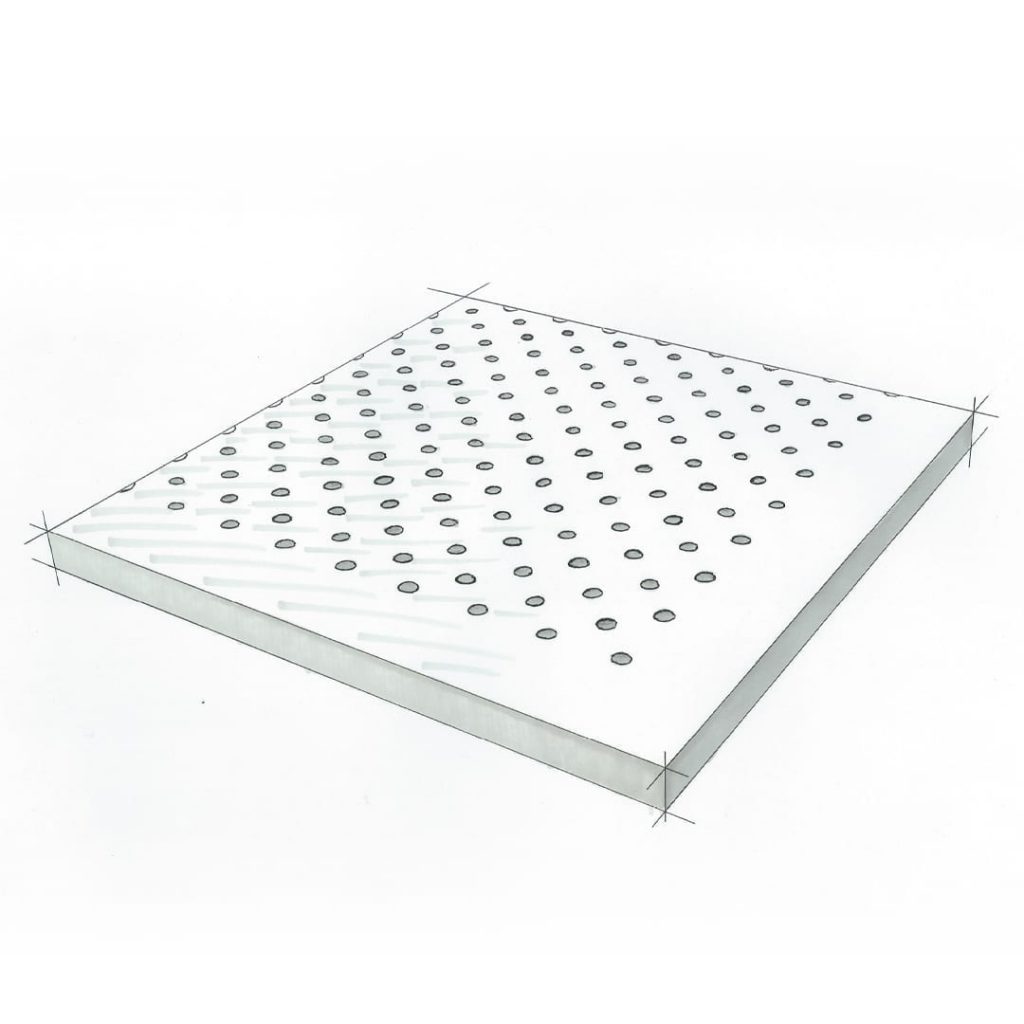

The 9Wood Staggered Perforated Pattern style wood ceiling tiles offer a perforated tiled appearance with a staggered (or 45°) perforation pattern and a non-perforated border. The 5200 Style Staggered Perforated Pattern is installed using any of the 4000 Series Wood Tile suspension methods.
The Staggered Perforated Pattern permits acoustic attenuation. Accessibility is determined by attachment method.
Staggered Perf Tiles must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.
The Staggered Perf Tile enhances acoustics with Sound-Tex™ acoustic scrim, factory-attached to the back side. For added sound attenuation, extra fiberglass absorptive material can be placed within the T-Bar grid. Insulation is typically provided locally.
Individual members and components can be treated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.
Staggered Perf Tiles may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.
The Staggered Perf Tile permits MEP penetrations in the ceiling's surface. Cut panels may require supplemental reinforcement. Fixtures and diff users must be independently supported.
Staggered Perf Tiles may require a safety wire tie-off or screw-locks to T-Bar. Please consult local code or a licensed engineer for any additional requirements.
Species & Finishes
9Wood offers both domestic and imported species for the Staggered Perf Tile. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.
Staggered Perf Tiles are suspended from 15/16" heavy duty T-Bar main runners. Main runners are typically 2' on center.
Staggered Perf Tiles typically weigh 3 pounds per square foot or less.
